A6VE28 Variable Plug-in Motor

A6VE/63 series Motor 28 cc/r displacement.

Plug-in structure, work with Plantery gearbox.

For Open and closed circuit.

Nominal pressure 400 bar, Maximum pressure 450 bar.

Interchangeable with Rexroth A6VM28 series Motor.


Product Detail

Product Tags

A6VE28/63 series Motor is a widely used open and closed loop variable motor for high pressure circumstances. The high pressure could be made 450 bar and various control types. It is plug-in structure and usually working with mechanical gearbox to acheave a higher torque application.

Features:

Typical Bent-axis design Motor.

Standard high pressure motor for widely usages.

Far-reaching integration in mechanical gearbox.

Easy to install, simply plug into the mechanical gearbox.

For use especially in mobile applications.

Optionally with flushing valve mounted.

Optionally with mounted high-pressure counterbalance valve.

Optionally with Speed transducer.

Optionally with Pressure sensor.

A6VE plug-in motor

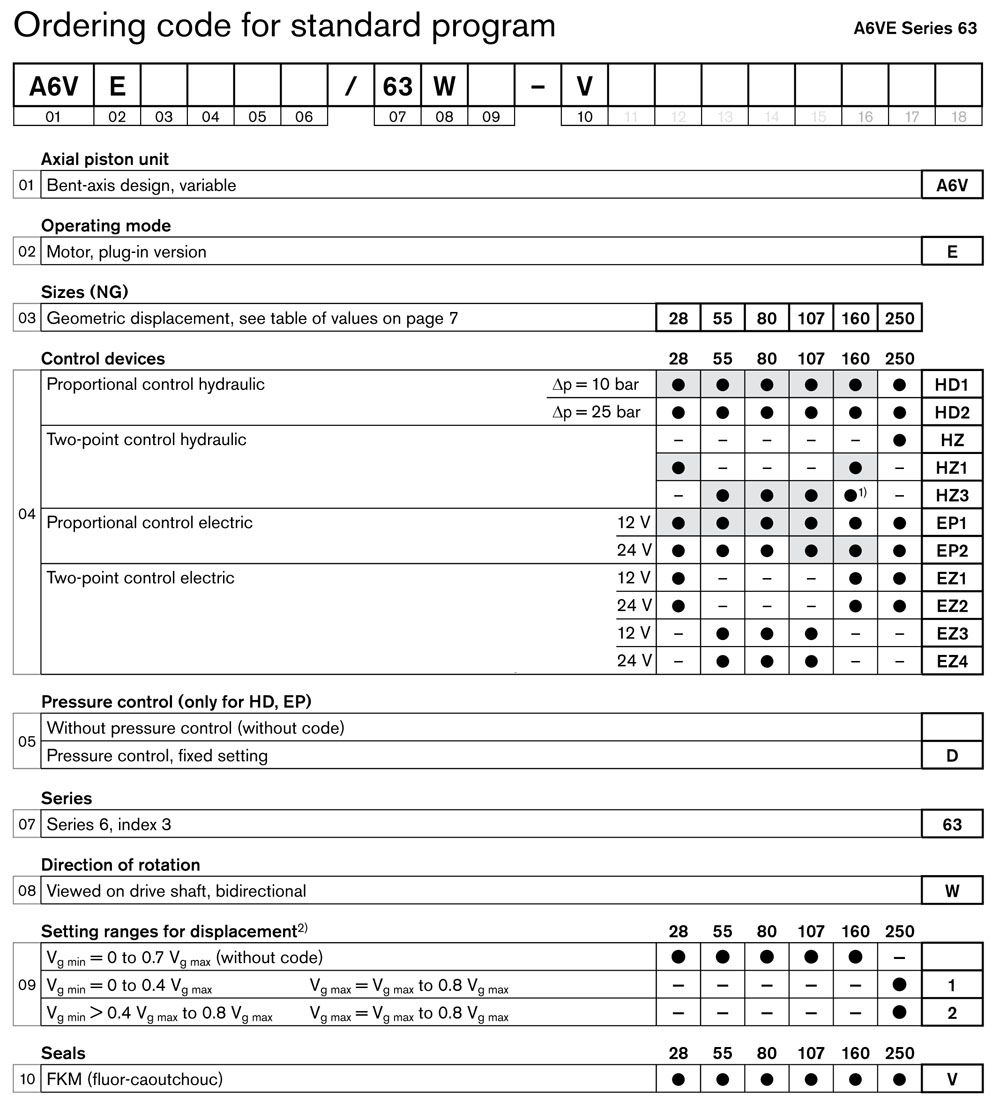

  Control type:

  HD – Proportional control hydraulic

  EP – Proportional control electric

  HZ – Two-point control hydraulic

  EZ – Two-point control electric

RE 91606/06.12

Connection dimensions (Interchangeable with Rexroth A6VE28 Motor).

RE 91606/06.12

RE 91606/06.12

A6VE plug-in motor
A6VE80EP2
