Factory Cheap Phv 3b Final Drive - Final Drive Motor WTM-03 – WEITAI Detail:

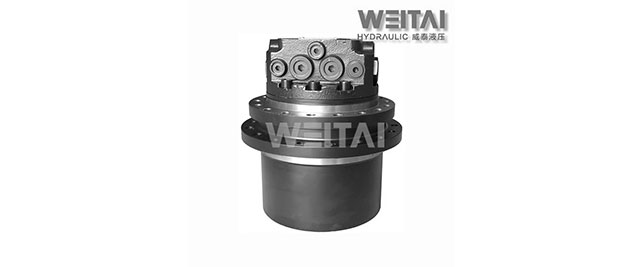

WTM-03 Final Drive is consisted of Swash-plate Piston Motor integrated with high strength planetary gearbox. It is widely used for Mini Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.
|
Model |
Max Output Torque (Nm) |
Max Working Pressure (Mpa) |
Max Output Speed (r/min) |
Applicable Tonnage(T) |
|
WTM-03 |
2100 |
24.5 |
70 |
1.5-2.5T |
◎ Key Features
Swash-plate Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Travel smoothly with very low noisy.
Automatic speed changing function is optional.
◎ Specifications
|
Model |
WTM-03 |
|
Motor Displacement |
16/9 cc/r |
|
Working pressure |
21 Mpa |
|
Speed control pressure |
2~7 Mpa |
|
Ratio options |
39 |
|
Max. torque of Gearbox |
2100 N.m |
|
Max. speed of Gearbox |
70 rpm |
|
Machine application |
1.5~2.5 Ton |
l Displacement and gear ratio can be made as required.
◎ Connection
|
Model |
WTM-03 |
|
Frame connection diameter |
150mm |
|
Frame flange bolt |
12-M10 |
|
Frame flange P.C.D. |
170mm |
|
Sprocket connection diameter |
160mm |
|
Sprocket flange bolt |
12-M10 |
|
Sprocket flange P.C.D. |
180mm |
|
Flange distance |
40mm |
|
Approximate weigth |
28kg (60lbs) |
l Flange hole patterns can be made as required.
As your reliable OEM Travel Motor supplier, Weitai Hydraulic has high standard intelligent automatic machining workshop. All key parts are made by CNC machining centers imported from Japan. Dust-free assembling workshop keeps our core parts away from dust pollution. High accuracy inspection and testing laboratory ensures every parts and assembly are qualified. 100% testing and trail-run gives us confident for every Motor we delivered to our clients
