A4VG180 Axial piston variable pump
A4VG series 180cc/r displacement variable swash plate type piston pump is a widely used closed loop hydraulic pump for high-pressure circumstances. The max pressure could be made at 450 bar.
It is widely used in Agricultural machinery, Construction machinery, Aerial Lifts, and other special vehicles.
Features:
Integrated auxiliary pump for boost and pilot oil supply.
Flow direction changes smoothly when the swashplate is moved through the neutral position.
High-pressure relief valves with integrated boost function.
With adjustable pressure cut-off as standard.
Boost-pressure relief valve.
Through drive for mounting of further pumps up to the same nominal size.
Large variety of controls.
Swashplate design.
Different types of control devices.

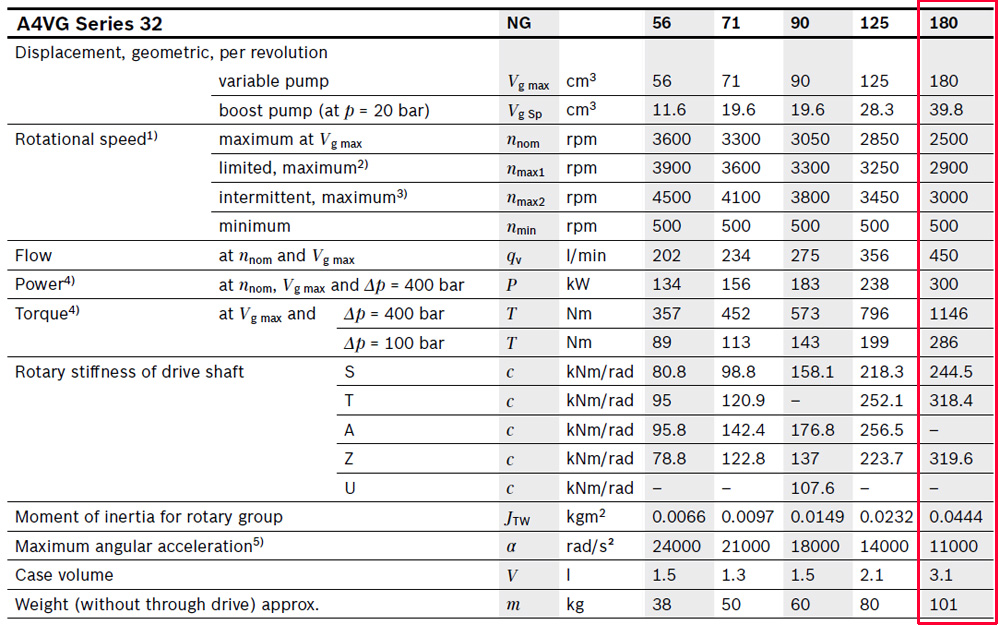

Parameters:
Ordering Code:
Connection Dimensions: interchangeable with Rexroth A4VG180 pump.
