A6VM107 Axial Piston Variable Motor

107 cc/r displacement.

All-purpose high pressure motor, Open and closed circuit.

Nominal pressure 400 bar, Maximum pressure 450 bar.

A6VM107HP, A6VM107EP, A6VM107EZ, A6VM107HA control.

Interchangeable with Rexroth A6VM Motor.

Product Detail

Product Tags

A6VM107 series Motor is a widely used open and closed loop variable motor for high pressure circumstances. The high pressure could be made 450 bar and various control types. It is widely used in Agricultural machinery, Construction machinery, Aerial Lift, and other special vehicles.


Typical Bent-axis design Motor.

Standard high pressure motor for widely usages.

Robust motor with long service life.

Approved for very high rotational speeds.

High control range (can be swiveled to zero).

High torque.

Variety of controls for different applications.

Optionally with flushing and boost-pressure valve mounted.

Optionally with mounted high-pressure counterbalance valve.

Optionally with Speed transducer.

Optionally with Pressure sensor.

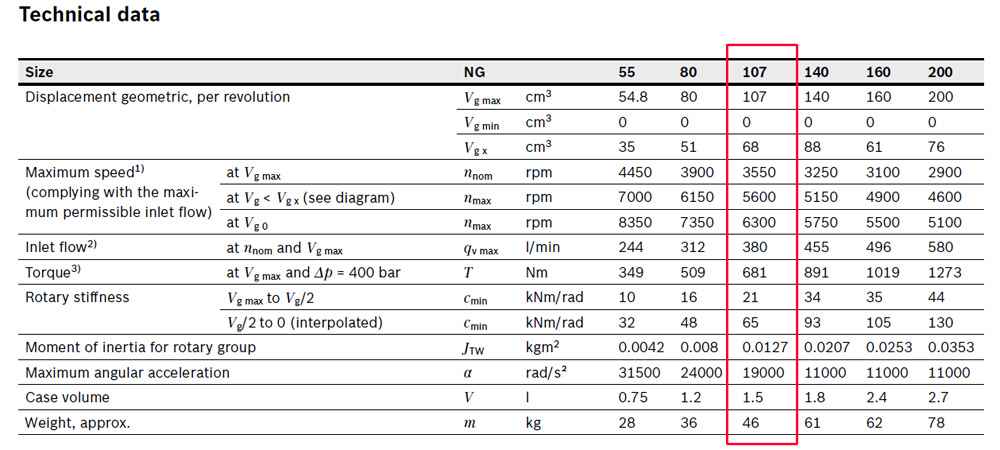

A6VM107 specification

Connection dimensions (Interchangeable with Rexroth A6VM107 Motor).

A6VM107 drawing


Various shaft options and control methords available.

A6VM160 in workshop
A6VM160 painting
