A10VG45 Axial Piston Variable Pump
A10VG series pump is a widely used closed loop pump for medium to high pressure circumstances. The high pressure could be made 400 bar to 420 bar. It is widely used in Agricultural machinery, Construction machinery, Aerial Lift, and other special vehicles.
Features:
Swashplate design pump for static hydraulic transmission.
Integrated boost pump for boost and pilot oil supply
Flow direction changes when the swashplate is moved through the neutral position
Flow is proportional changed as the input speed and displacement for various speed.
High-pressure relief valves with integrated boost function
Boost-pressure relief valve
Standard pressure cut-off valve.
Parameters
|
Size |
|
|
|
45 |
|
Displacement |
variable pump |
|
Vg max |
46 cc/r |
|
boost pump |
p = 20 bar |
Vg sp |
13.8 cc/r |
|
|
Speed |
maximum at Vg max |
|
n nom |
3300 rpm |
|
limited, maximum |
|
n max.l |
3550 rpm |
|
|
intermittent, maximum |
|
n max.i |
3800 rpm |
|
|
minimum |
|
n min |
500 rpm |
|
|
Flow |
at n nom and Vg max |
|
q v |
152 L/min |
|
Power |
at n nom and Vg max |
Δp = 300 bar |
P max |
76 kW |
|
Torque |
at Vg max |
Δp = 300 bar |
T max |
220 Nm |
|
|
Δp = 100 bar |
T |
73 Nm |
|
|
Case volume |
|
|
V |
0.75 L |
|
Weight approx. |
(without through drive) |
|
m |
27 Kg |

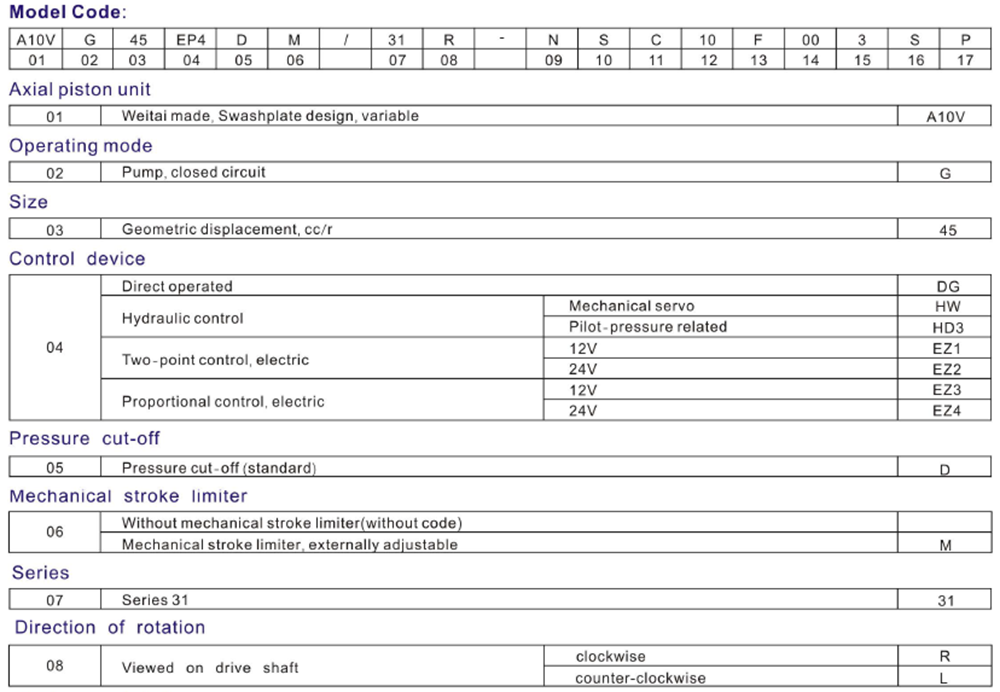

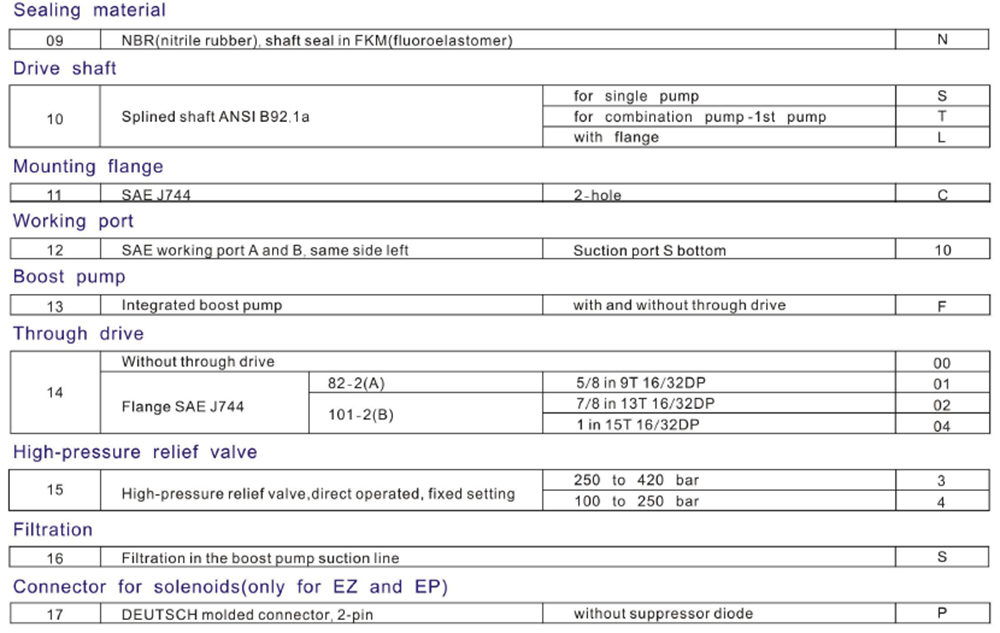

Ordering Code
