A4FO Axial Piston Fixed Pump

All-purpose high pressure pump

Size 180, 250, 500. (other size is in developping)

Rated pressure up to 350 bar.

Maximum pressure up to 400 bar.

Open circuit.

Metric version.

Interchangeable with Rexroth A4FO pump.

Product Detail

Product Tags

A4FO is a swashplate design pump with fixed displacement. It is a widely used high pressure pump up to 400 bar.
It can be used on open circuit both for mobile and for stationary applications.


Economical design

Low noise level

Long service life

High power density

High total efficiency

Excellent suction characteristics

Through drive for combining additional pumps

Optimized dimensions for special installation situations

A4FO fixed pump

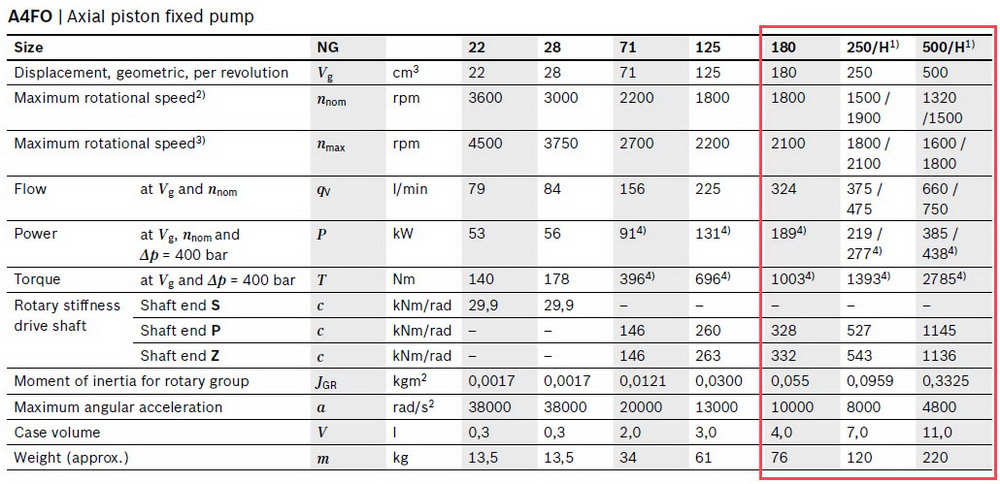

A4FO Parameters

A4FO specifications

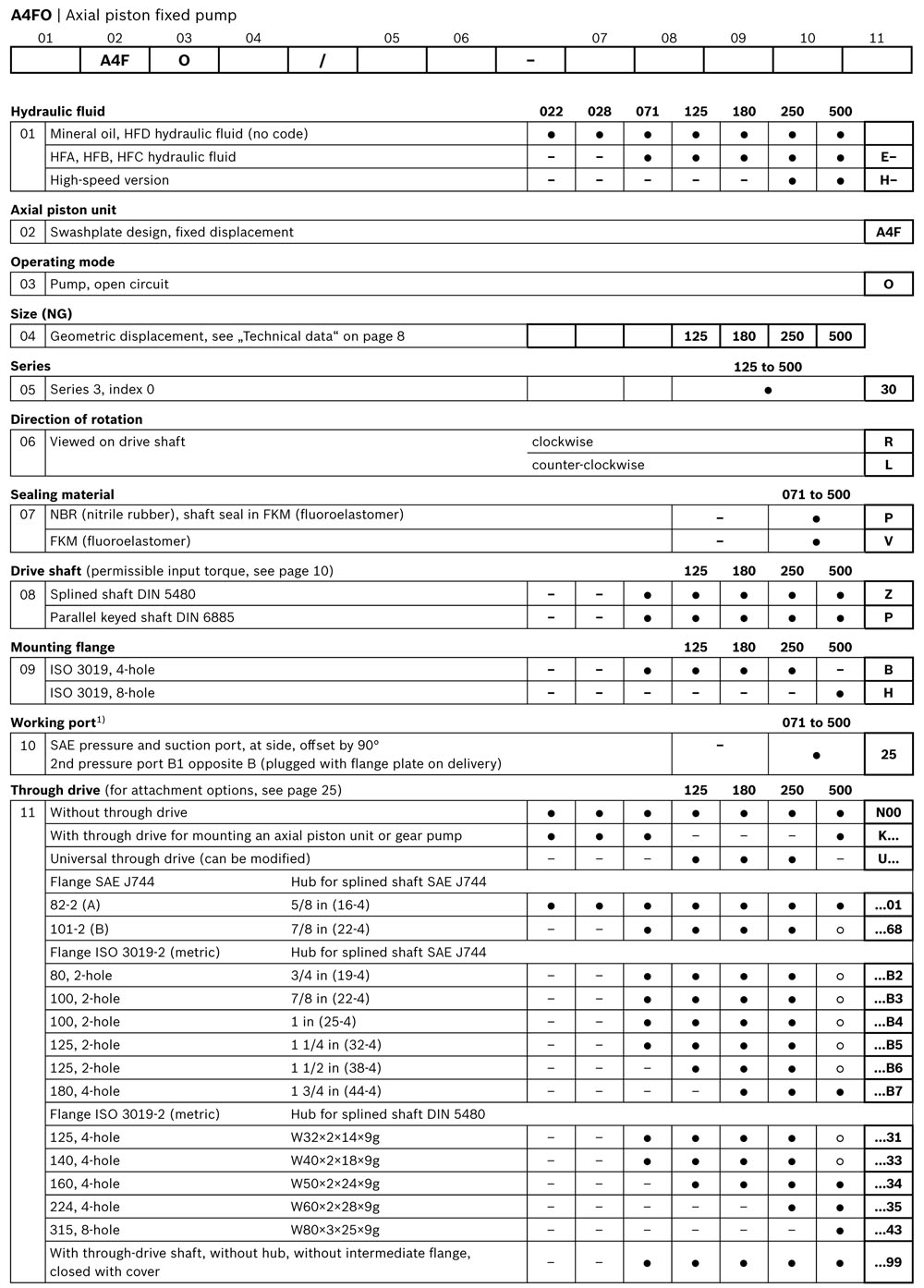

A4FO pump Ordering Code

RE 91455/03.2015

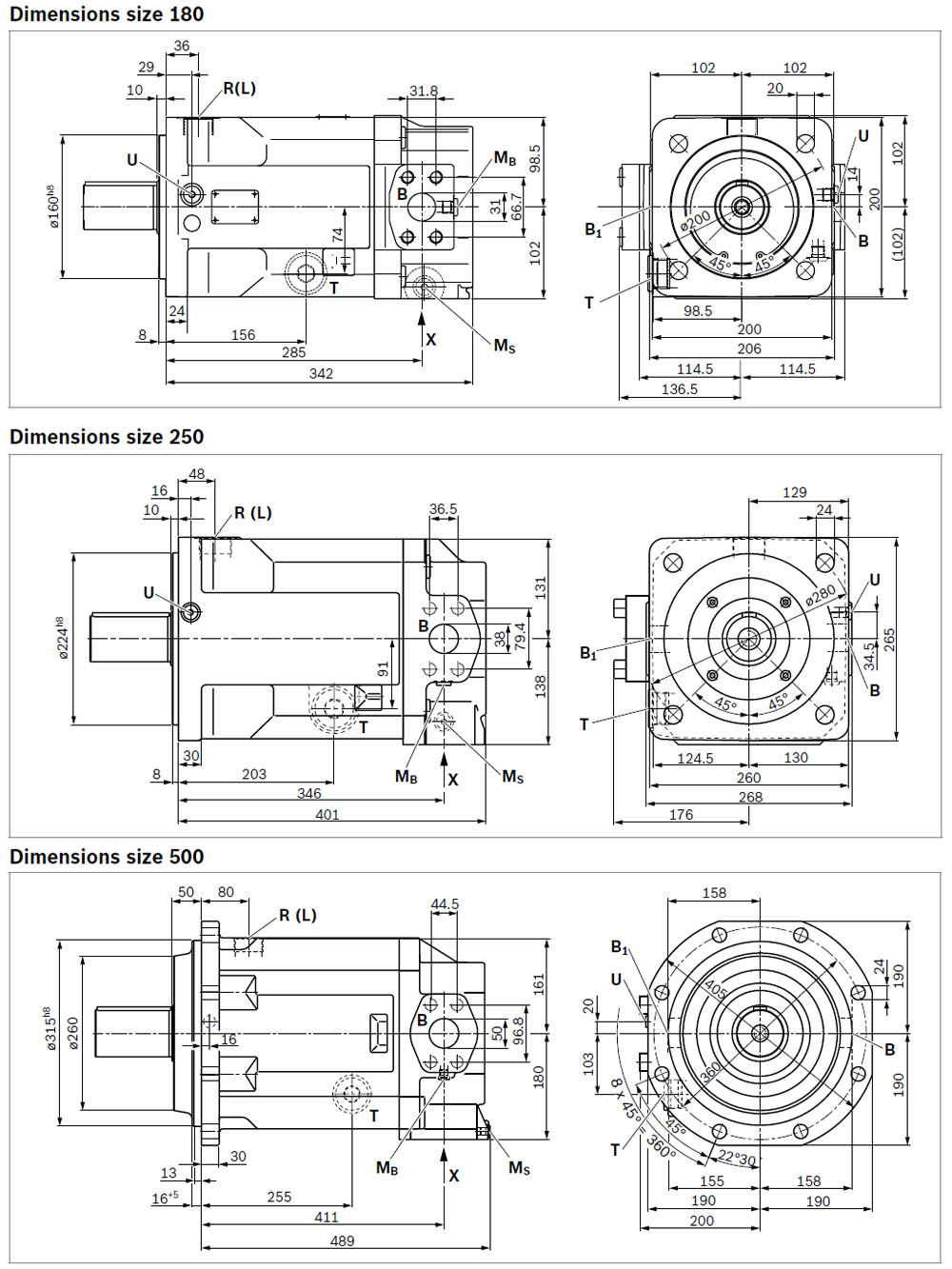

A4FO dimensions:

A4FO dimensions
